Case Study | SMC Mini-mix Concrete, Shawbury, Shropshire | SPEL Attenuation & Separator

Shropshire

Project Overview

We recently supplied specialist drainage and environmental equipment for SMC Mini-mix Concrete in Shawbury, Shropshire, supporting the site’s operational and environmental infrastructure requirements.

Products Supplied

• SPEL Tankstor 300 Series TS300 – 10,000L
• SPEL Puraceptor P100 1CSC

The combination of these systems will create a reliable and efficient drainage strategy for the site. Surface water is now managed in a controlled and effective way, reducing the risk of flooding and ensuring the infrastructure can cope with peak rainfall conditions.

Environmental protection of the site and surrounding area is also significantly improved. By capturing pollutants at source using the SPEL Puraceptor Full Retention Oil Separator, the systems help to protect local watercourses whilst supporting compliance with environmental standards.

All of our SPEL Puraceptors are fitted with an automatic closure device (ACD) which shuts off the outlet when the contained oil exceeds the maximum oil spill capacity, ensuring that no oil can escape into the environment. This made it perfect for this working site where an oil spillage could occur.

Both the SPEL Tankstor Attenuation Tank and SPEL Puraceptor Full Retention Separator are covered with the SPEL 25 Year Tank Shell Warranty with a life expectancy in excess of 50 Years, and our SPEL Puraceptors are designed and tested to the British/European Standard BS EN 858-1.

Installation

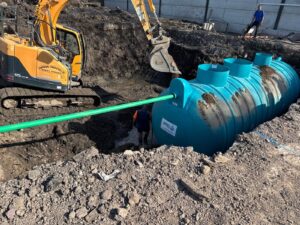

Pictured is the installation of the SPEL Puraceptor P100/1CSC oil separator on site. Designed to help manage and treat surface water runoff, the system provides a robust and reliable solution suited to industrial and commercial environment.

Outcome

The successful supply and installation of the equipment ensures that the site benefits from dependable attenuation storage and effective surface water treatment infrastructure, helping support long-term operational efficiency, peace of mind and environmental compliance.

We’re pleased to have supported SMC Mini-mix Concrete on this project and look forward to seeing the completed development in operation.
