Case Study | Bembridge Harbour | Isle of Wight

Isle of Wight

At A Glance:

  • Location : Isle of Wight

Products Supplied:

  • Model supplied: SEP300/20000 – SPEL 300 Series (1.8m diameter) Septic Tank with 20,000 litre
  • Designed to BS6297
  • Single Tank, off-site built design for rapid installation on-site
  • GRP is very resilient to Hydrogen Sulfide, the most corrosive substance within wastewater.
  • SPEL tanks are supplied with a 25 Year Warranty and life expectancy in excess of 50 years
  • Model supplied: TS300/20000 – SPEL 300 Series (1.8m diameter) Tank with 20,000 litre
  • Full height, load-bearing partition divides the tank into two chambers, a 12m3 chamber for further foul settlement and a 8m3 buffer tank which will act as a pumping station.
  • Bespoke design such as this with the Tankstor divided into two sections and multiple inlet/outlet connections available.

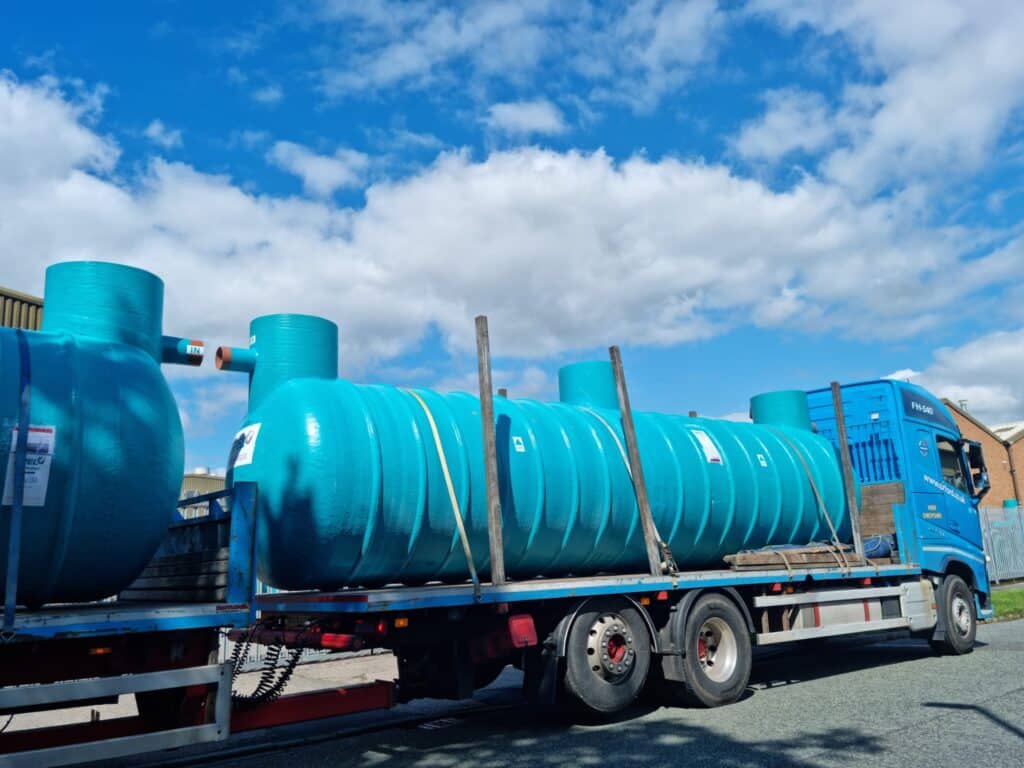

WhatsApp Image 2024-01-03 at 16.20.59_6f2a7669

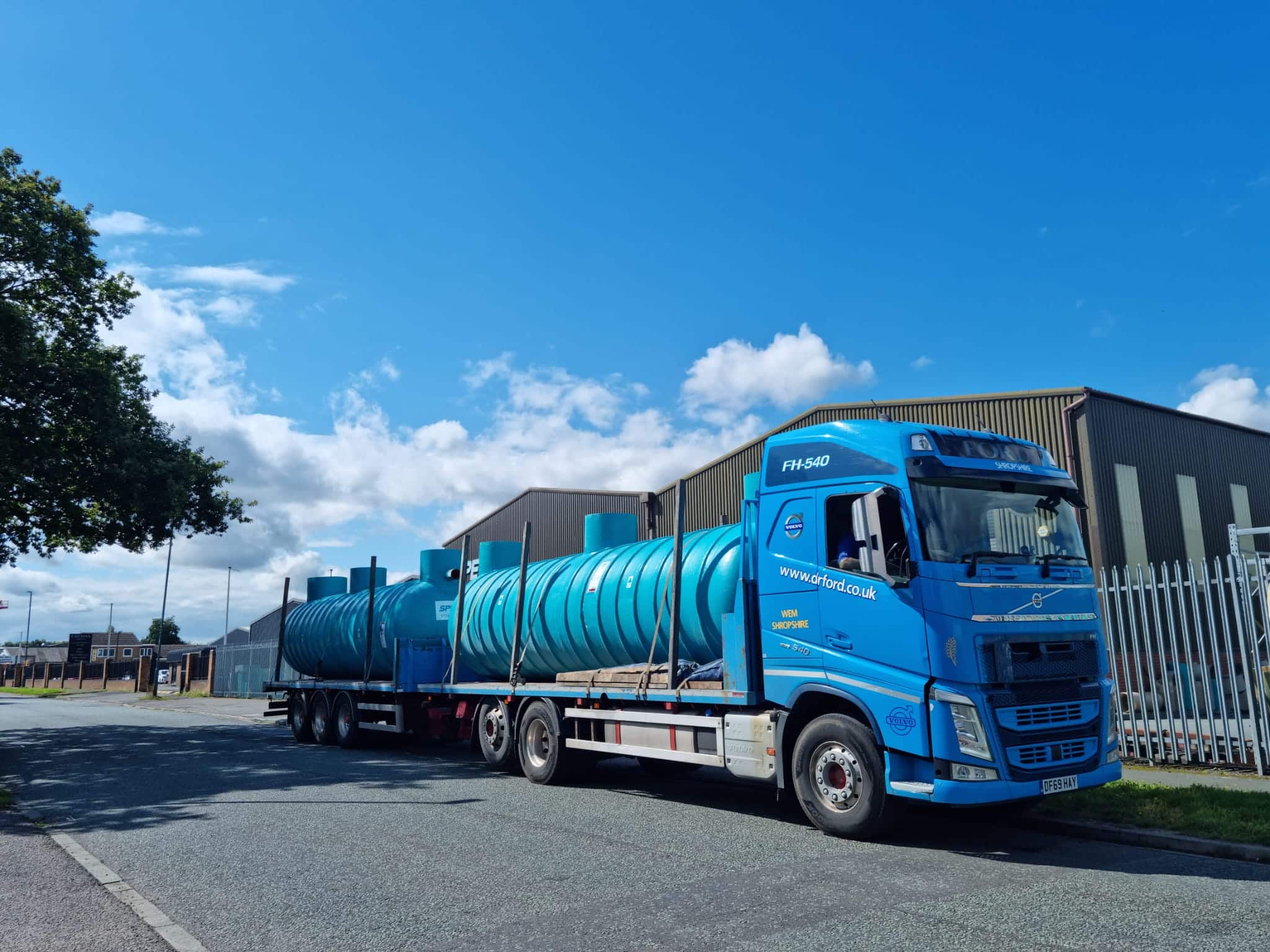

WhatsApp Image 2024-01-03 at 16.20.59_19458182

Bembridge Harbour on the Isle of Wight is a Site of Special Scientific Interest (SSSI) and the nearby Brading Marshes is an RSPB, both of which must be protected from all kinds of water pollution. The SSSI site and nearby RSPB site provide many picturesque walks in the area, as well as the nearby beaches and historic sites also providing great places to explore. The harbour is a naturally protected harbour on the east side of the Isle of Wight and is used in the main by smaller, non-commercial shipping.

For this project SPEL manufactured 2 of our SPEL Tankstor 300 Series tanks with 20,000 litres capacity. These tanks were being installed inline, with the first one being fitted out with a SPEL Septic tank baffle ensuring the design was to BS 6297. This tank then discharges into the second SPEL Tankstor which was fitted out with a full height, load-bearing partition that divided the tank with the first 12m3 being a septic tank and the second part of the tank being an 8m3 buffer tank which will act as a pumping station with internally fitted pumps that will discharge into a 3rd parties sewage treatment system that will treat the effluent before final discharge.


All SPEL tanks are manufactured with our 25 Year Tank Shell Warranty and have a life expectancy in excess of 50 years. Our range of WRc Approved package pumping stations come with a 30 Year Tank Shell Warranty.
